Sightmark T-5 Magnifier with LQD Flip to Side Mount

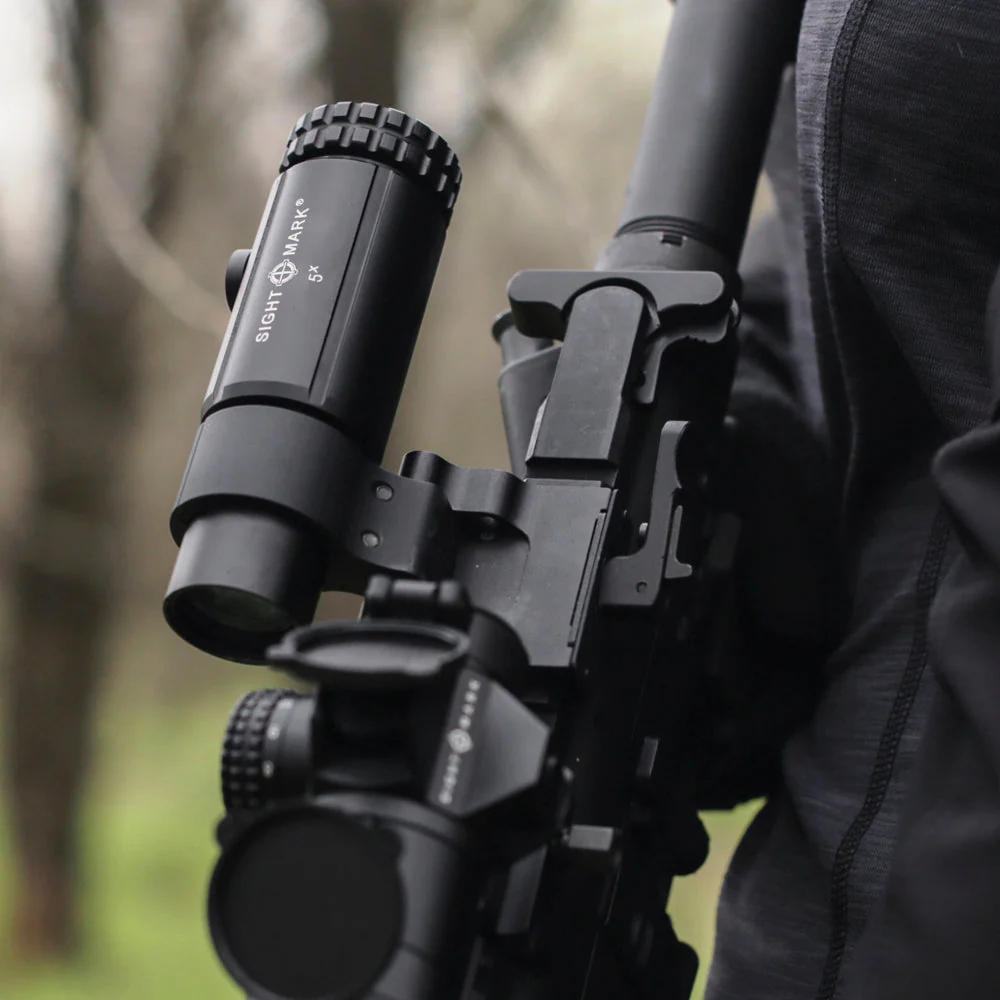

Built for shooting versatility, the Sightmark T-5 is a magnifier that mounts behind a reflex sight or red dot and provides an absolute co-witness. Instantly change the magnification of your close-range optic from 1x to 5x by using the T-5’s flip-to-side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing. Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.
Features
- Locking, quick detach mount for quick and easy removal
- External windage/elevation adjustment for reticle alignment
- Absolute co-witness
- Fully multi-coated, scratch resistant
- 5x magnification increases engagement to 200 yards
- EOTech® and Aimpoint® compatible
Specifcations
| Magnification | 5x |
|---|---|
| Objective Lens | 23 mm |
| Diameter, Eyepiece | 1.26/32 in/mm |
| Diameter, Exit Pupil | 4.6 mm |
| Eye relief (in/mm) | 2.25/57 in/mm |
| Field of view, m@100m | 9.8 |
| Field of view, ft@100yd | 29.6 |
| Diopter Adjustment | +3 to -3 |
| Diameter, Tube | 30 mm |
| Maximum Recoil | .308 Caliber |
| Shockproof | Yes |
| Fog Proof | No |
| IP Rating (waterproof) | IP55 - water resistant |
| Finish/Color | Matte black |
| Body Material | Aluminum |
| Lens Coating | Full Multi-coated |
| Mount Type | Picatinny |
| Operating temperature, F/C | -22 to 160 / -30 to 71 F/C |
| Length (in/mm) | 4.72 / 120 in/mm |
| Width (in/mm) | 2.6 / 66.2 in/mm |
| Height (in/mm) | 1.67 / 42.5 in/mm |
Included in Package
- Flip to side LQD mount
- Adjustment tools
- Manual
